Digital Volt Meter

AC & DC MEASUREMENT

An electronic voltmeter for AC or DC voltage with true RMS measurement, password protection and Class 0.5/1 accuracy — built for industrial, commercial and electrical applications, in single-phase, three-phase and DC variants.

AC RANGE0–750VAC (PT selectable)

DC RANGE0–200VDC

ACCURACYClass 0.5 / 1

MEASUREMENTTrue RMS

Enquire about this product

FULL SPEC SHEET

Technical specifications.

PRODUCT NAME	Digital Volt Meter
AC VOLTMETER RANGE	0–750VAC (PT ratio selectable)
DC VOLTMETER RANGE	0–200VDC
ACCURACY	Class 0.5 / 1
AUXILIARY SUPPLY	45–270V AC/DC
MEASUREMENT	True RMS
PASSWORD PROTECTION	Yes
COMMUNICATION	RS-485 (optional)
SIZE OPTIONS	48×96mm, 72×72mm, 96×96mm

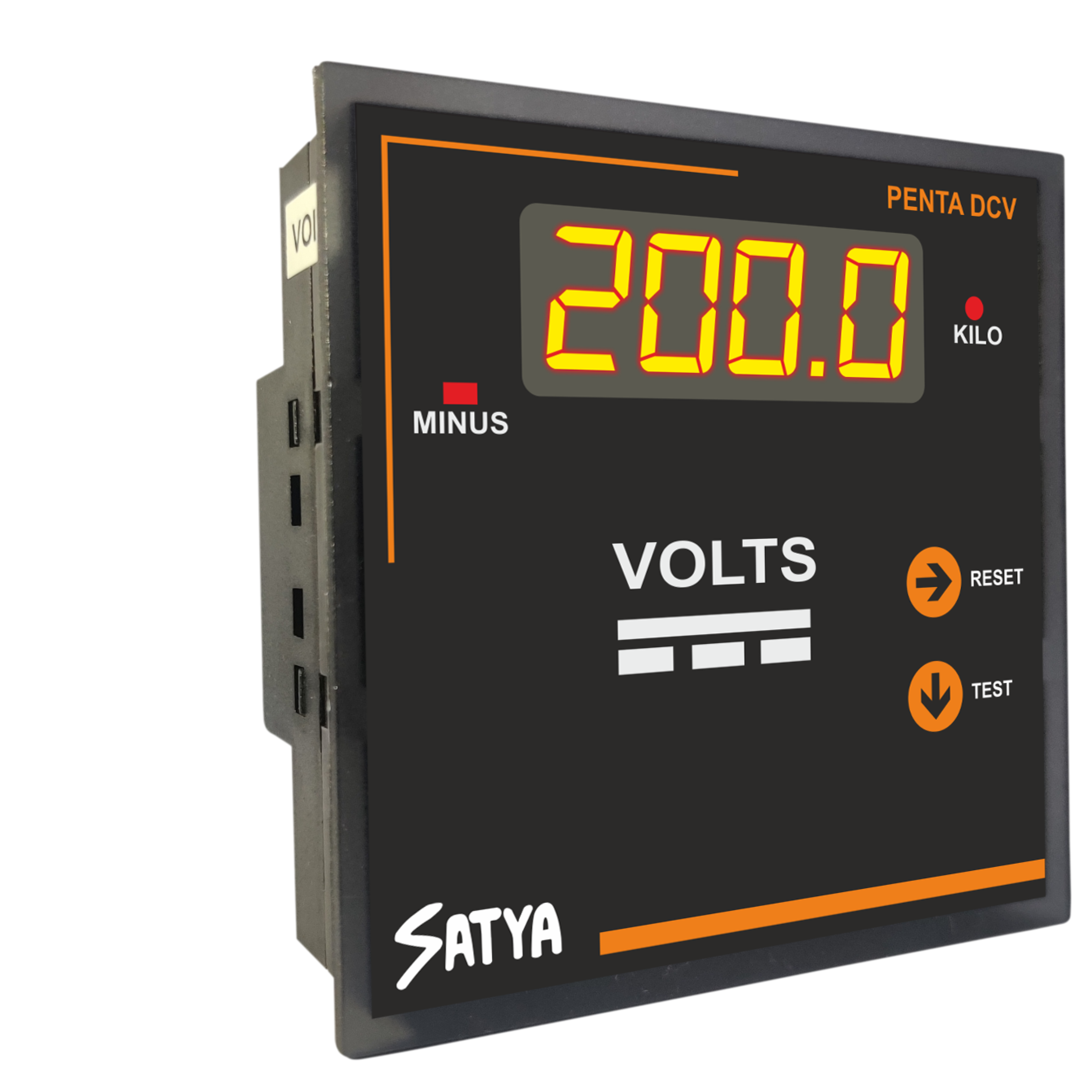

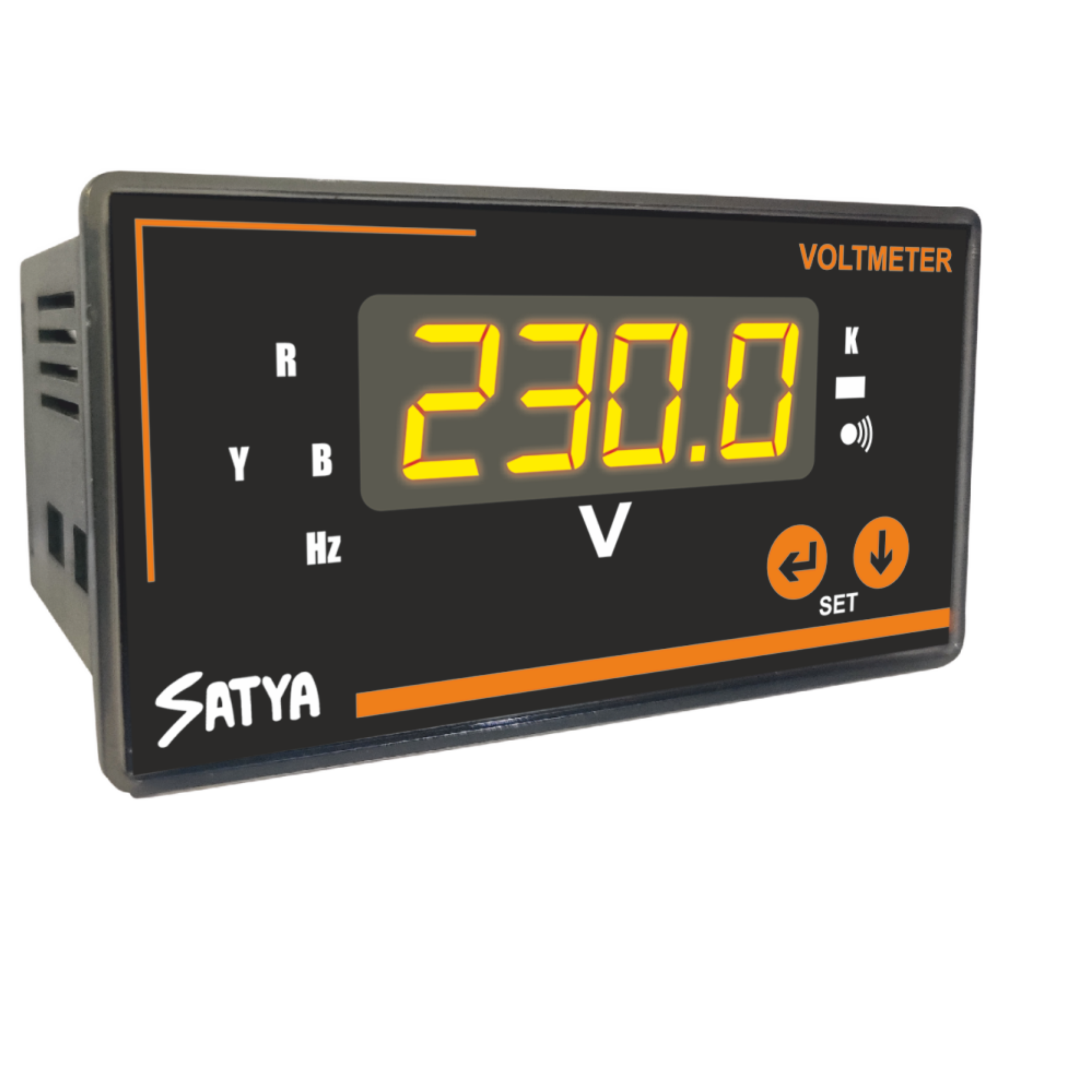

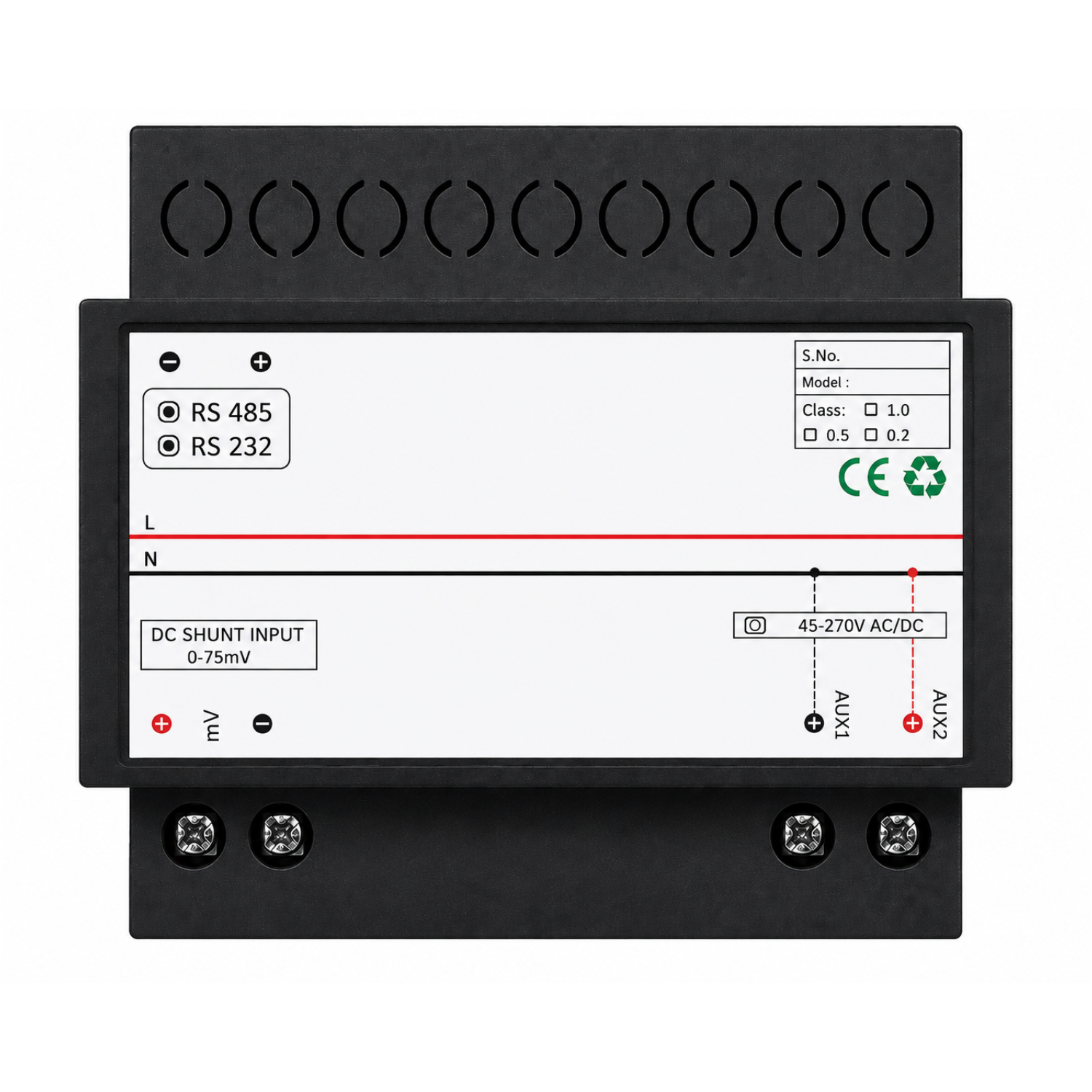

VARIANTS	AC — single phase / three phase · DC — single phase
MOUNTING	Panel mounted

WHERE IT'S USED

Applications.

Industrial power distribution panels Utility, LT & HT panels Electrical control panels

ORIGINAL DOCUMENT

View the datasheet.

The full manufacturer spec sheet, embedded below — or download it directly.

CAN'T SEE THE PDF ABOVE? DOWNLOAD IT DIRECTLY →
